Sheet Metal

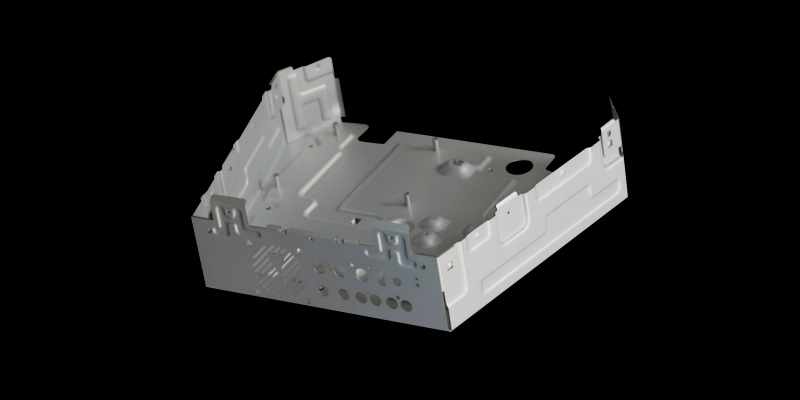

Sheet metal processing

Mass Production Of Metal Components With High Durability Using Stamping Dies.
Suitable For Brackets, Terminals, And Structural Frames.

Scalable For High-Volume Needs, Reliable Dimensional Accuracy.

Materials

Iron Plate

Cold Rolled Steel Sheet

Hot Rolled Steel Sheet

AL, Sus, Copper

Size

Part Max : 1,000x300x200

Quick Turn(Mobile Phone Size)

• Simple2-3 Day
• Normal7 Day
• Complex2-3 weeks Production
  Progressive Tool

Capabilities

Bending | Stamping | Spring | Chemical Etching | Blasting | Laser Welding | Diamond Cutting | Barrel | Polishing | Coil

Manufacturing technologies

Our range of services includes laser metal cutting and bending for the production of sheet metal parts. The automated cutting process we use guarantees high precision and quality parts. All parts can be reworked according to your requirements: This includes coating, heat treatment and other processes.

Processable metals

The following materials are available: Aluminium, stainless steel, brass, copper, alloy steel, bronze, titanium and carbon steel.

Tolerances

We offer different tolerance standards according to ISO 2768 (standard, fine) and ISO 2768 (grade 8, 7, 6). Please contact us for detailed information and customised solutions.

Detail	Dimensional tolerance (mm)
Edge to edge (single surface)	0,127 mm
Edge to hole (single surface)	0,127 mm
Hole to hole (single surface)	0,127 mm
Bend to edge/hole (single surface)	0,254 mm
Edge to moulded part (multiple surfaces)	0,762 mm
Over moulded part (multiple surfaces)	0,762 mm
Bending angle	+/- 1°

Possible component post-processing

Anodising, passivation, hard oxidation, powder coating, painting, plating, sandblasting, brushing

Discover new possibilities

Get a quote for your prototype or low-volume production project today. data formats: Catia, NX, STEP, IGES, PRT, SLDPRT, DXF, and DWG. Email: service@upperrapid.com
